Manufacturing Services for original equipment manufacturers
Turn key Control systems
A complete systems supplied fully working and tested with software loaded and calibrated. Turnkey systems are cost effective, safe and reliable.
Industrial Controllers
TRM manufacture a range of controllers for many applications, we also design and manufacture bespoke controllers for almost any application, from temperature controllers through to CNC controllers. We also supply custom controllers for your specialist application.
Custom controllers for OEMs
TRM offers a custom controller service, the product offering ranges from motion and automation Controllers, CNC controllers, systems for catering and bakery equipment, Oven controllers, Depositors, Bain marie controllers, Hot cupboard controllers, Hot and Cold food counters controllers ans instrumentation.
Branded Keypads and interface cards
Branded Keypads and Graphic Overlays
TRM can supply a branded keypad as a complete product or as part of a customized controller. A well designed keypad can attract a positive, image in the eyes of potential customer, it conveys a high level of professionalism. Using a custom overlay also makes the process easier to use for the operator, improves safety and also can reduce training times.
Keypads are made using a reverse printed polycarbonate membrane, bonded to an aluminum backing plate. A printed circuit board is mounted under the aluminum plate and tactile switches protrude through the plate so that when pressed the embossed overlay lies flat against the plate preventing the operator from damaging the keypad switches. To make the overlay durable, the image is reverse printed, normally this is silk screen printed using solvent based inks and typically has around 6 colors. More colors can be printed using dot matrix printing with near photographic quality but with less durability as solvent inks are not used.
- Long life expectancy > 1,000,000 key presses
- Durable and tactile finish.
- Low cost to implement.
- Bright vibrant colors, scuff and UL resistant.
- Water and dust resistant.
- Matt or shiny finish.
- Highly attractive appearance and professional feel
- Tactile and easy to clean
Bespoke Interface Boards
Bespoke interface reduce complexity and wiring, making servicing easier and are generally much more cost effective than discrete devices. An interface card can greatly reduce electrical complexity to the point where there may only be a controller, interface, sensors, guard switches and motors.
In addition to making wiring more compact and easier, they can be used to support a wide range of services analogue services such as thermocouples amplifiers, load cell interfaces etc. Other services include Mains services such as power supplies, solid state relays, mains filters. Typically an interface card will include a connector to all services on the machine including safety circuits, drive interface etc.
- Analogue services like thermocouple inputs.
- Temperature controllers etc.
- Power supplies.
- Mains filtering and fuses.
- Easy to implement connectors.
- Safety relays.
- Solid state relays.
- extra inputs and outputs.
Custom Software
Custom software can be supplied as either a MAP template or as an executable program. Map is an easy to use programming language that has over 116 commands and some commands have 12 options. The benefit of a template is that it can be easily edited to suit special end user needs.
Creating menus and end user interfaces is very simple, many user interfaces can be written in less than 20 lines of code. Training is available and many people are able to program effectively after a very short course.
- Easy to program, via Pull Down Menus
- No programming tools are needed.
- Program on or off line.
- Use or include G code.
- Graphical commands make user displays bright and easy to implement.
- Custom MAP commands available.
- Nesting commands.
- Extensive IO commands available.
Sensors, wiring and cables

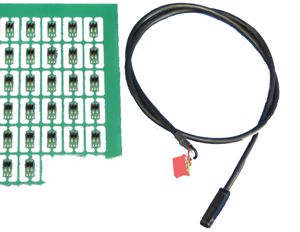

Custom sensors
Custom sensors can be manufactured so suit special applications like the IR sensor shown above. TRM can design and manufacture sensors for many applications including pressure, humidity, temperature, inductive, capacitive, light level, IR, level, voltage and current.

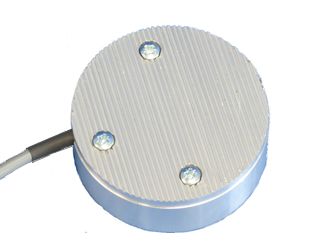

Special purpose encoders
Some applications may need a special encoder working with Renishaw magnetic encoders, TRM can design and manufacture special purpose encoders. Linear or rotary encoder designs are possible as are incremental or absolute encoders.
Electrical Boxes and Panels
Systems can be supplied as a plug and play. Where the complete system can be supplied fully working. The electrical box service is available from our distributors world wide.
Wiring harnesses, Cables and Wiring
Custom cable and wiring kits are available for OEMs and for any application.
Drives, Motors and gearboxes
DC Servo drives
DC drives can be used for many applications and sometimes a special purpose drive may be needed for a special application. TRM designs and manufactures drives and we are happy to advise on special purpose drives.

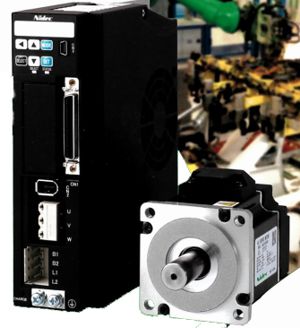

Brushless Servo drives
A range of brushless servo drives from 10 watts to 50 Kilo Watts. Brushless drives can be used for many applications and are highly stable and reliable.

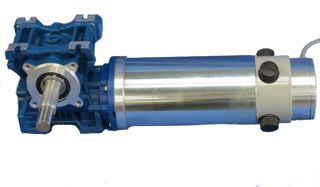

Servo Motors
Servo motors with or without pulleys and mounting plates from our partner manufactures with a wide range of motors to offer including DC servo, brushless servo motors, stepper motors, induction motors and linear motors.
Motors and gearboxes
TRM works with other manufacturers as a partner. We are able to supply many different motor options, for example fitting gearboxes can be difficult, TRM offers specialist support services and can part manufacture motor parts and mounting plates etc. TRM can calculate the torque loading and specify a best fit motor size and type.
- DC servo motors and drives.
- Brushless servo motors and gear boxes.
- Stepper motors and drives.
- Induction Motors and inverters.
- Servo Motors with brakes.
- Linear and Rotary Encoders.
Actuators, Linear guides, pulleys and belts
Ball screw, belt and rack and pinion Actuators
TRM works with our partner manufacturers TRM offers advice and on linear axis be they ball screw, belt or rack and pinion. TRM can supply the actuators you need ready to use with servo motors, linear encoders, home sensors etc.

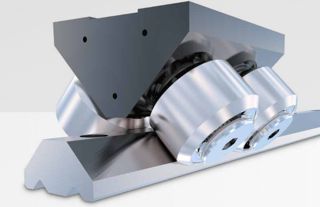

Linear guides
Working with partner manufacturers TRM offers advice and on linear guides and can supply guides which can be customised to suit specific requirements. Guides can be supplied with home switches and or linear encoders built it.
Pulleys, mounting brackets etc
Part of a complete service is the provision of a fit and forget service. Custom kits can be supplied with Motor Mounts, belts and pulleys which can be supplied ready machines to suit the client application.
Hardware, Software, Verilog, Circuit Board and Mechanical Design Services
Circuit Design and Prototype service
With many years of experience in the design of electronics hardware, ranging from semiconductors, white goods, Medical devices, control systems, temperature controllers, instrumentation etc. TRM offers a prototype service and once the design is approved offers a contract manufacturing service.
Printed Circuit Design Service
Using computer aided design TRM can design circuit boards up to 32 layers, for all types of product from radio, micro processor, analogue, power etc. TRM has more than 24 years of printed circuit design experience.
Mechanical Design & prototype service
Using 3D cad mechanical design services include, Motor mounts, brackets, enclosures, custom parts for machines, load cells, MMI and displays.
- Brackets and motor mounts
- Supports and plates
- Cabinets and casings
- Custom plastic parts
- Actuators
- Encoders and sensors
Services for original equipment manufacturers (OEMs)
For many OEMs it is better to buy a turn key control system rather than the individual parts. This approach has many advantages such as flexible and reducing costs. TRM can design and supply a range of control options for OEMs. Our full systems service can deliver a complete system, controller, sensors, electrical box, Motors, cables, actuators, gearboxes, linear guides. All complete systems are delivered fully working to your exact needs.
